With Sawing machine SV3 MAXI perfect cuts can be obtained within the nominal tolerance, able to cut up to 45 cm.
Technical data:
Cutting width 640 mm.
Cutting height 300 mm.
Maximum cutting height with special blade-guide 450 mm.
Dimensions of work surface 500 x 640 mm.
Maximum blade lenght 3650 mm.
Min. blade width 3 mm.
Power of motor 3 HP 2,2 KW
Weight 250 Kg

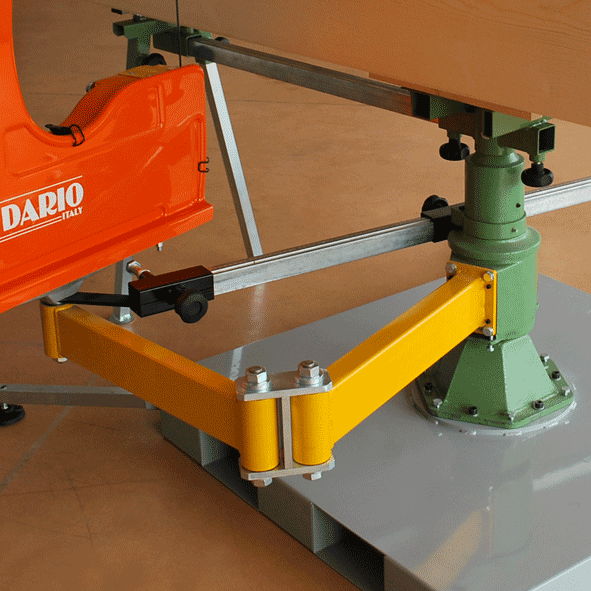

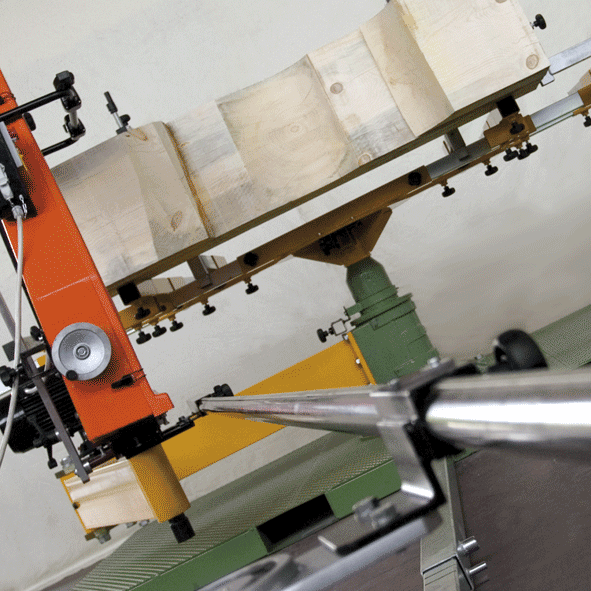

Available either on a base-plate to cut the part on a fixed sawing machine, or on articulated arm and column to be able to make any type of shaped or circular cut.
As for the SN33 / SN44 also the MAXI model can be fitted with an inclinable device (SR-900) that applied to the base of the sawing machine permits an inclination from 1° to 45°.
