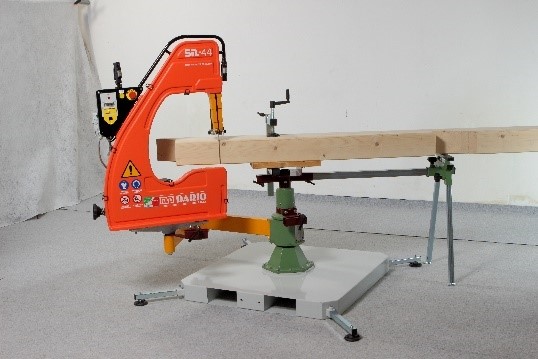

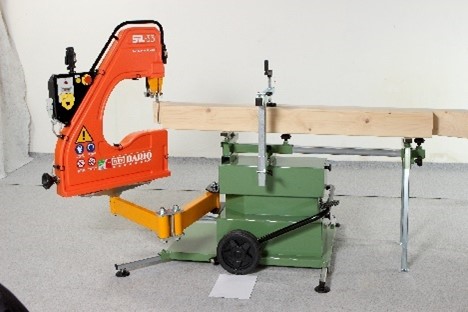

SN33 bandsaw can be used as fix machine, like a table saw, or mobile, applying it on the articulated arm (BS) on SET1500 and SET2000.The use of the double handgrip ensures cutting quality, maneuverability and higher safety.
SN33 model includes:
- BANDSAW SN33
- COPYING DEVICE
- BELLOW PROTECTION SYSTEM
- DOUBLE HANDGRIP
- WORK SURFACE
|Cutting width||15″ (390 mm)|
|Cutting height||10″ (250 mm)|
|Max cutting height with special blade-guide||12″ (310 mm)|
|Dimension of work surface||19″ x 16″ (500 x 400 mm)|
|Blade length||100″ (2530 mm)|
|Minimum blade width||0.11″ (3 mm)|
|Power of motor||1.5 HP – 1.1 KW|
|Weight||110 lb (50 Kg)|
* Cutting tolerance, which depends on the type of blade used and on the cutting heights, is considered as the tolerance for standard bandsaw. The use of the blades does not guarantee a tolerance lower than ± 2 mm.
SN33 WITH WORK BENCH – the band saw applied to the bench; it is used as fixed machine.
AP 500 – it consists in SN33 bandsaw and the articulated arm BS400.
SN33 band saw is applied on the articulated arm BS400. The machinery might be applied on walls, columns or pillars.
