With SN44 the operator can cut up to 40 cm high. As SN33, it can be applied on the mobile trolley (SET1500) or column (SET2000). SN44 model includes:
- BANDSAW SN44
- COPYING DEVICE
- BELLOW PROTECTION SYSTEM
- DOUBLE HANDGRIP

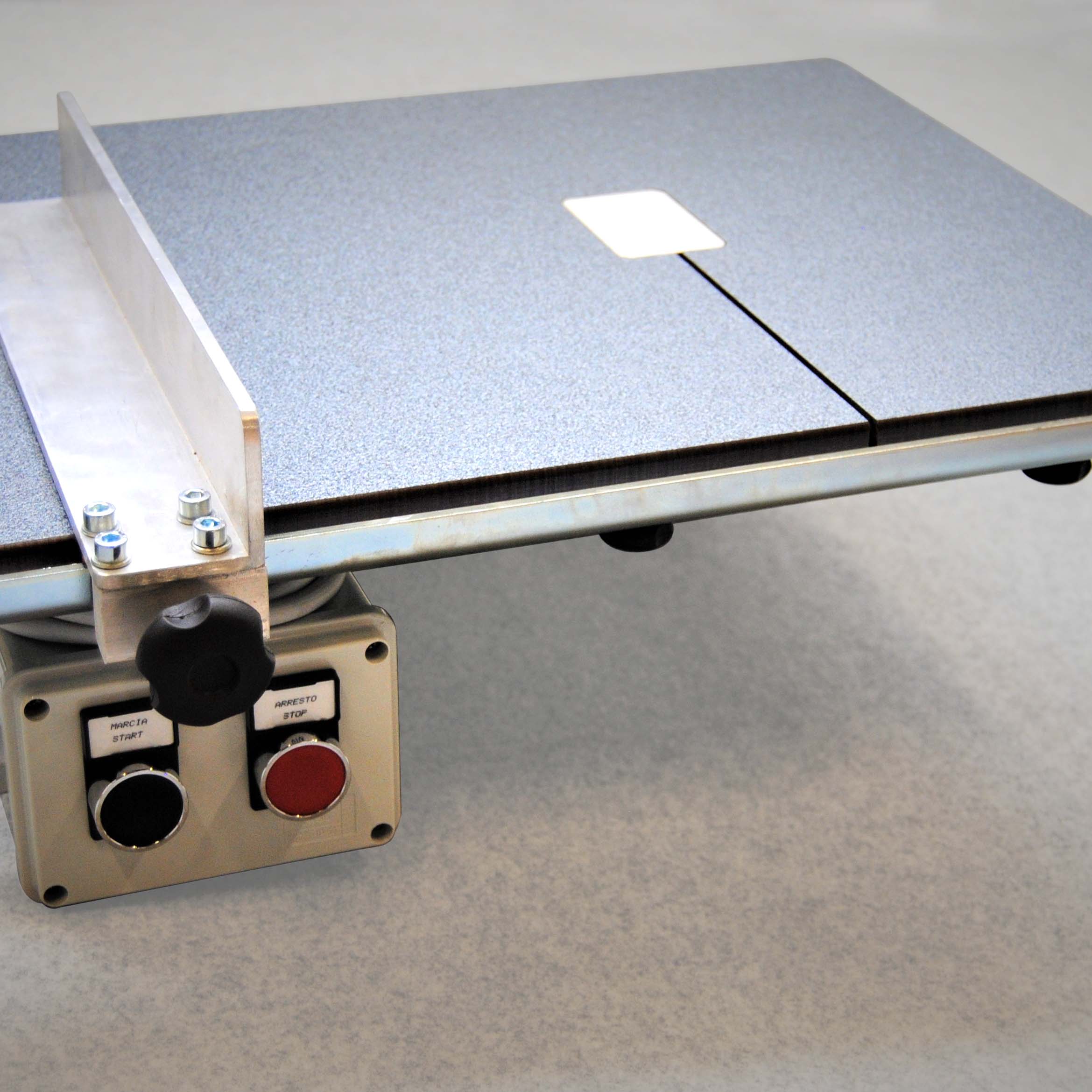

- WORK SURFACE
|Cutting width||15″ (390 mm)|
|Cutting height||14″ (350 mm)|
|Maximum cutting height with special blade-guide||16″ (410 mm)|
|Dimensions of the work surface||19″ x 16″ (500 x 400 mm)|
|Blade length||107″ (2720 mm)|
|Minimum blade width||0.11″ (3 mm)|
|Power of the motor||1.5 HP – 1.1 KW|
|Weight||121 lb (55 Kg)|
* Cutting tolerance, which depends on the type of blade used and on the cutting heights, is considered as the tolerance for standard bandsaw. The use of the blades does not guarantee a tolerance lower than ± 2 mm.
SN44 WITH WORK BENCH – applied to the bench, the bandsaw is used as fix machine like a table saw.
AP 500 – SN44 band saw is applied on the articulated arm BS400. The machinery might be hold on walls, columns, or pillars.
SET1500 – It includes the SN44 bandsaw applied to the articulated arm and the mobile trolley. SET1500 is Easy to move and ideal for those who work on construction sites and places outside the company.
SET2000 – it includes the SN44 bandsaw applied to the articulated arm BS600 and the column, allowing to cut 360°.
